Both suction and liquid lines have premium polymeric jacketed insulation.

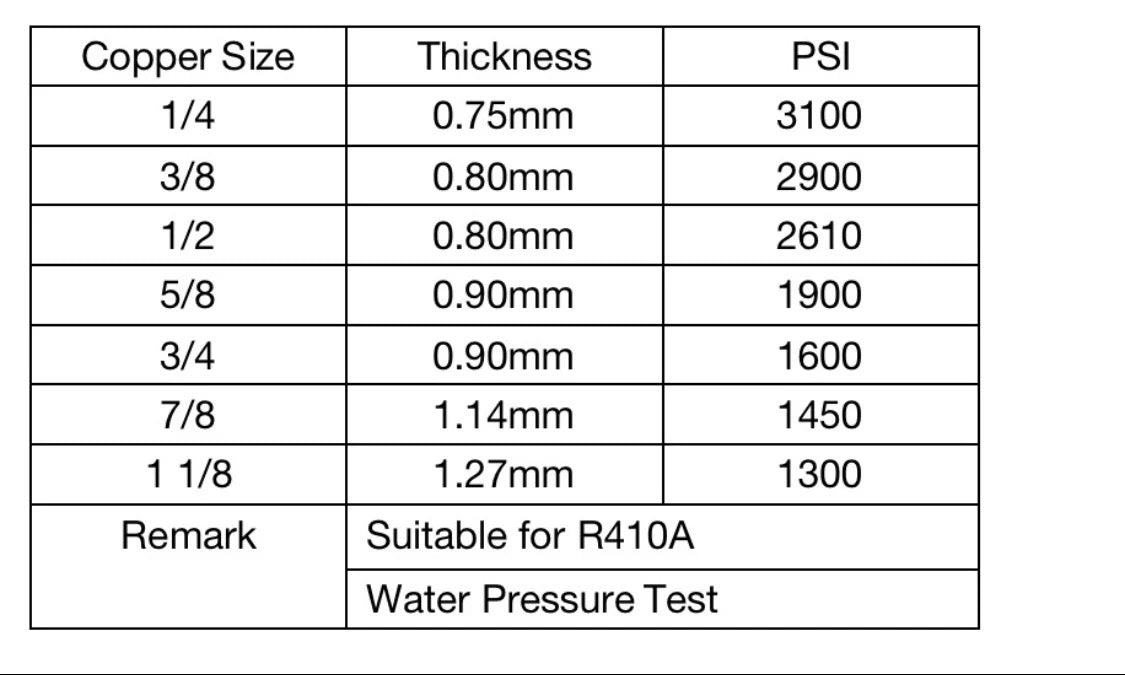

1/4" suction line with 1/2" premium insulation thickness 0.75mm rated for 3,100 psi

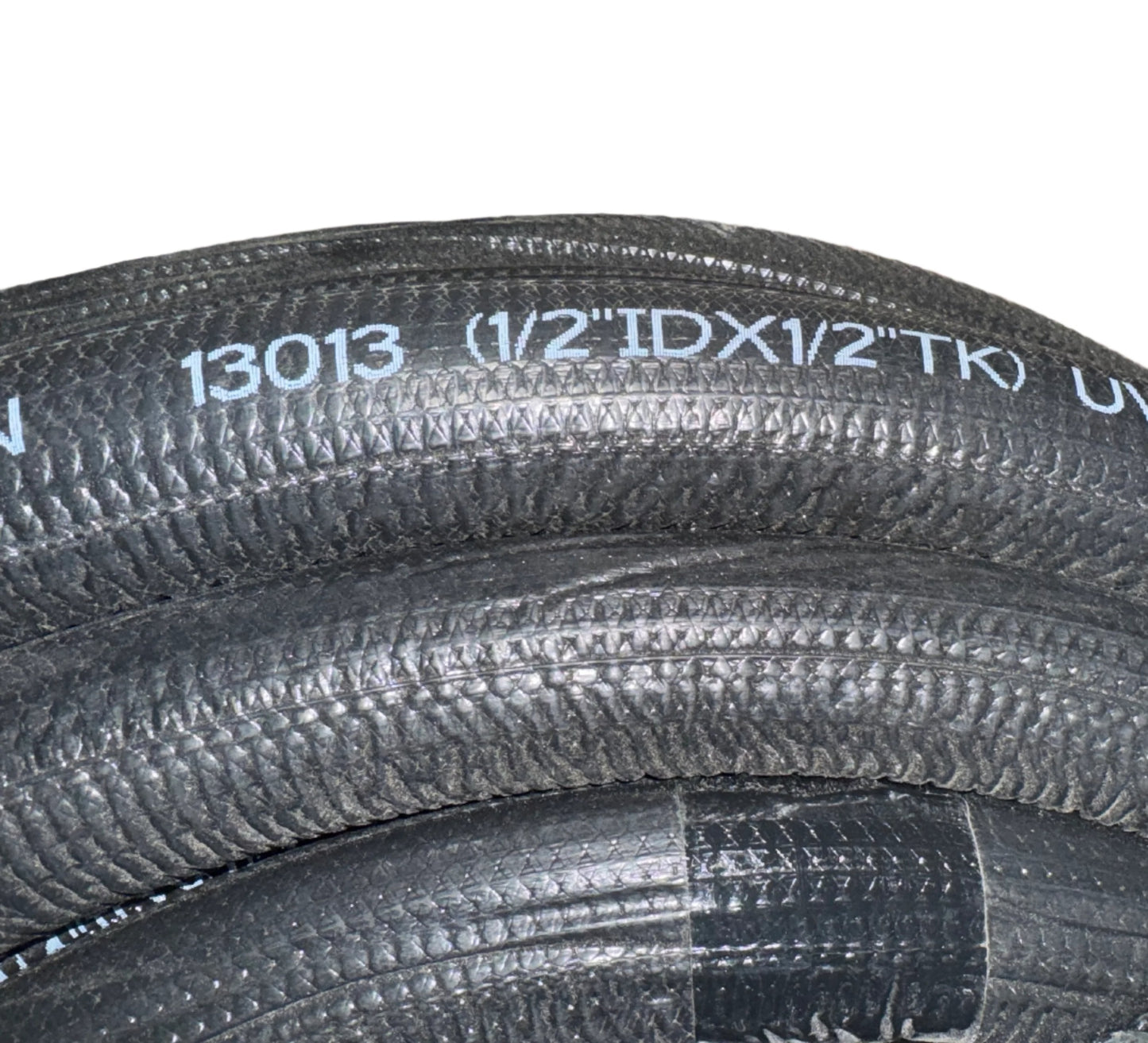

1/2" liquid line with 1/2" premium insulation thickness 0.80mm rated for 2,610 psi

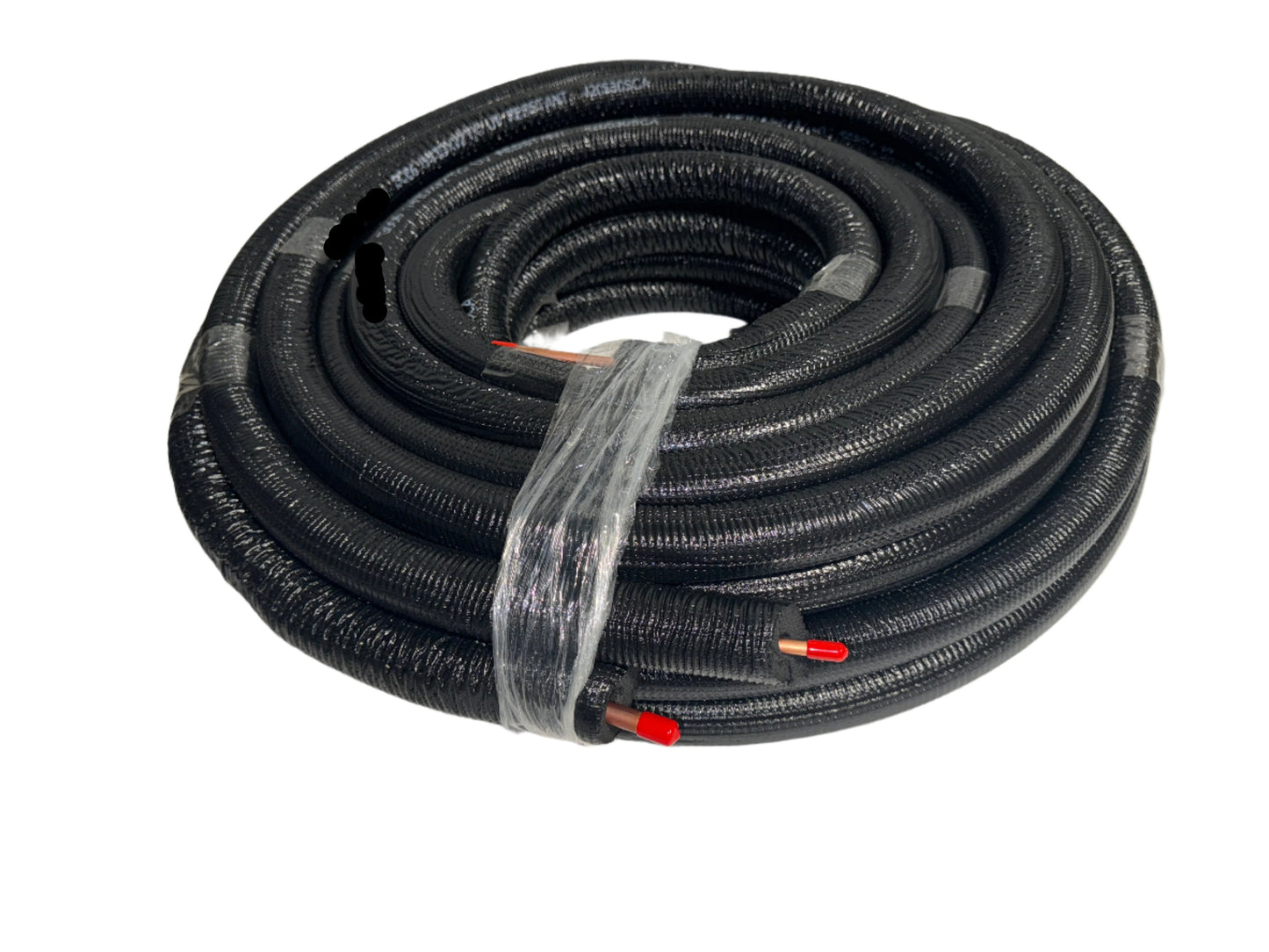

50 feet long

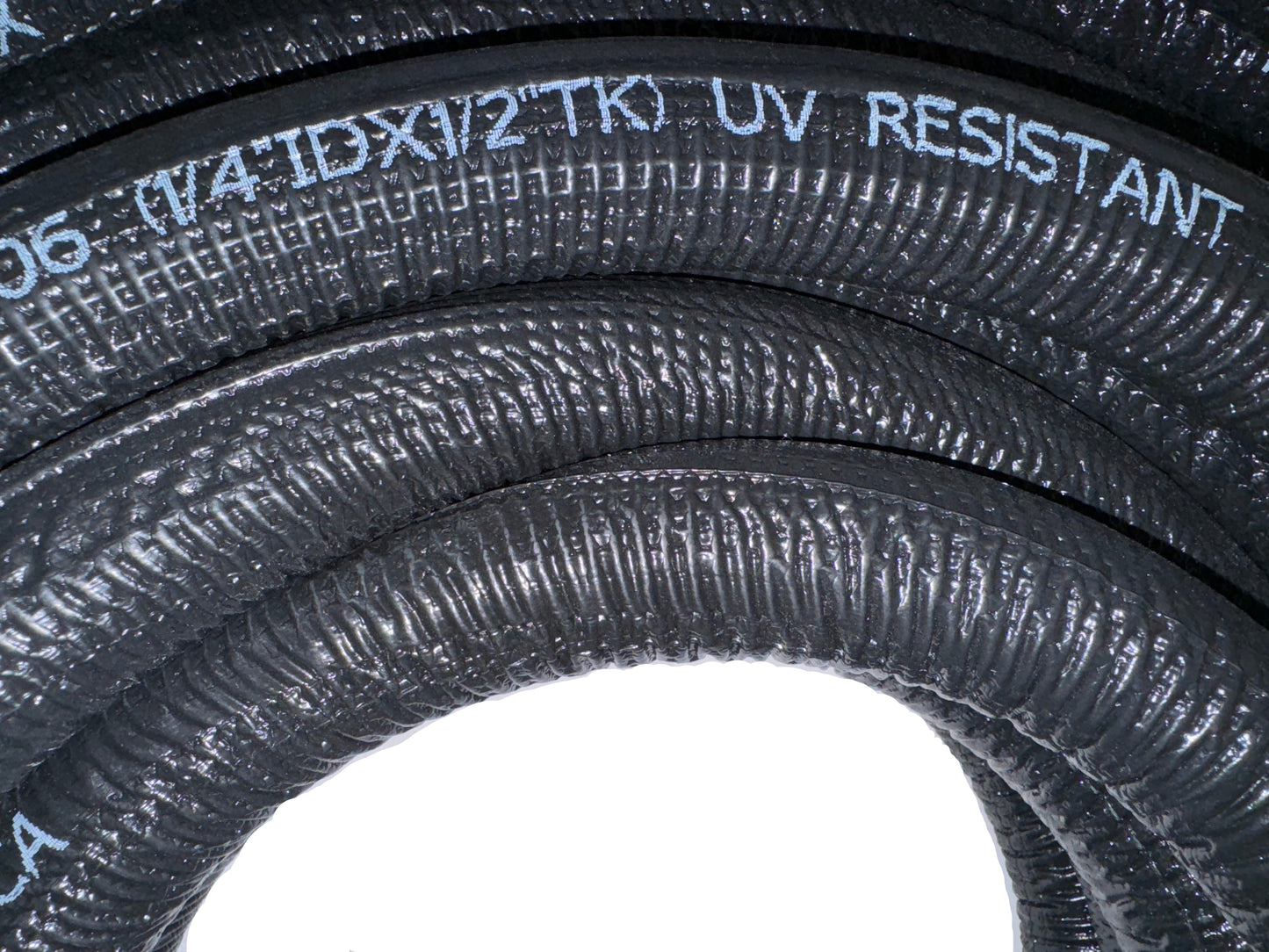

1/2" Polymeric Jacketed Insulation: The tubes are covered with 1/2 inch thick insulation, which helps to prevent energy loss and condensation. The polymeric jacket indicates that the insulation material is a type of synthetic polymer, commonly used for its thermal insulating properties.
This line set is typically used in split-system air conditioners or heat pumps, where it helps to transport refrigerant between the condenser unit and the evaporator coil. The insulation is crucial for maintaining energy efficiency and preventing issues related to condensation.
